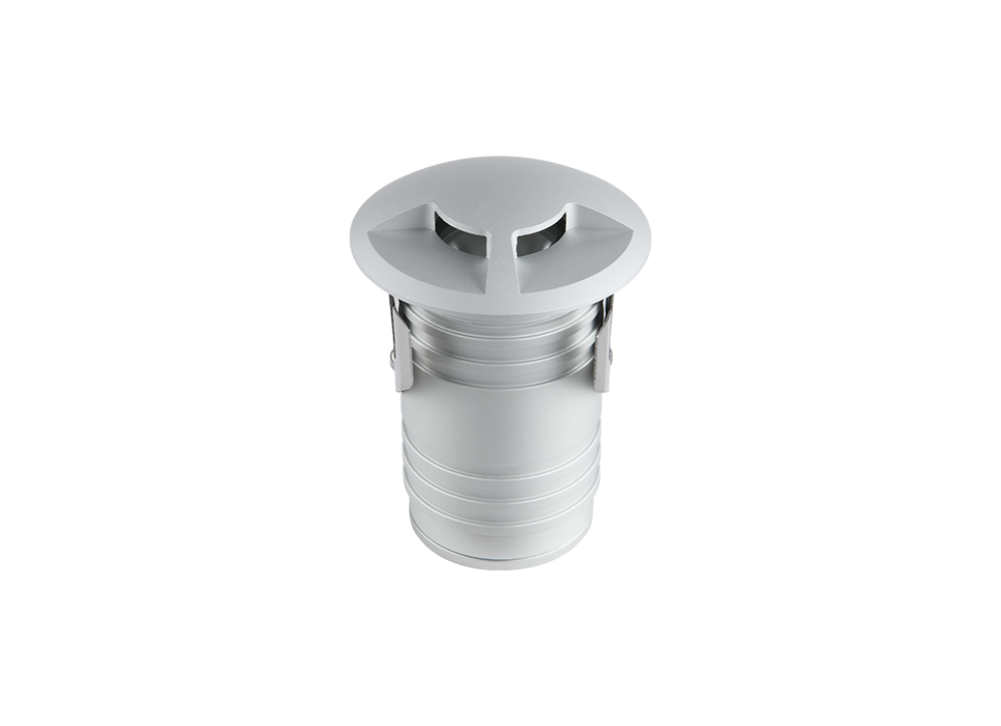

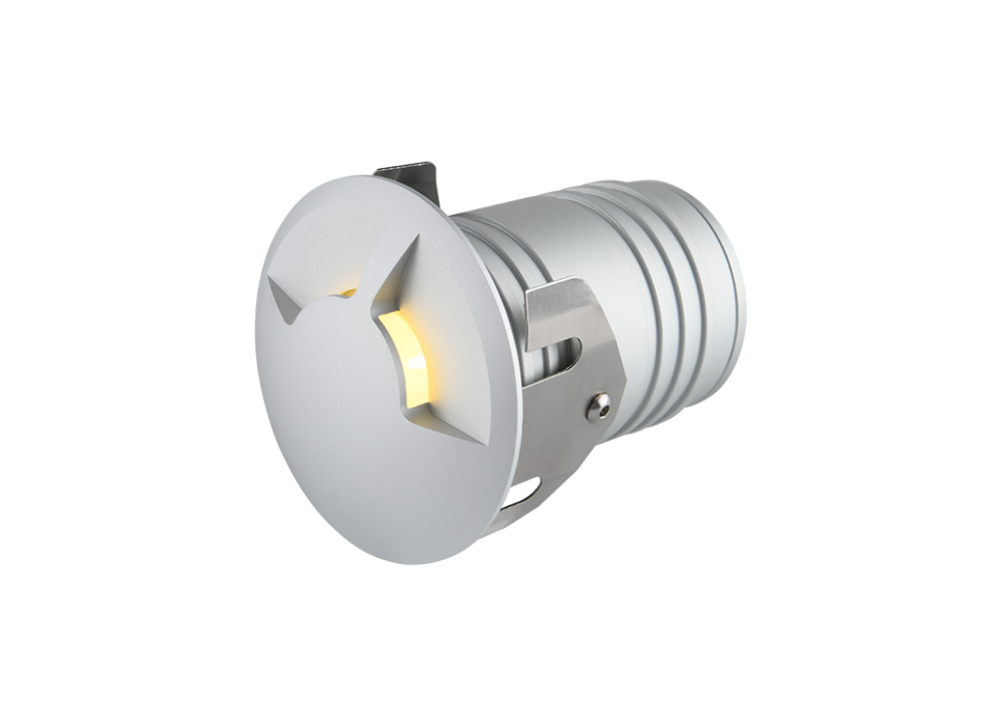

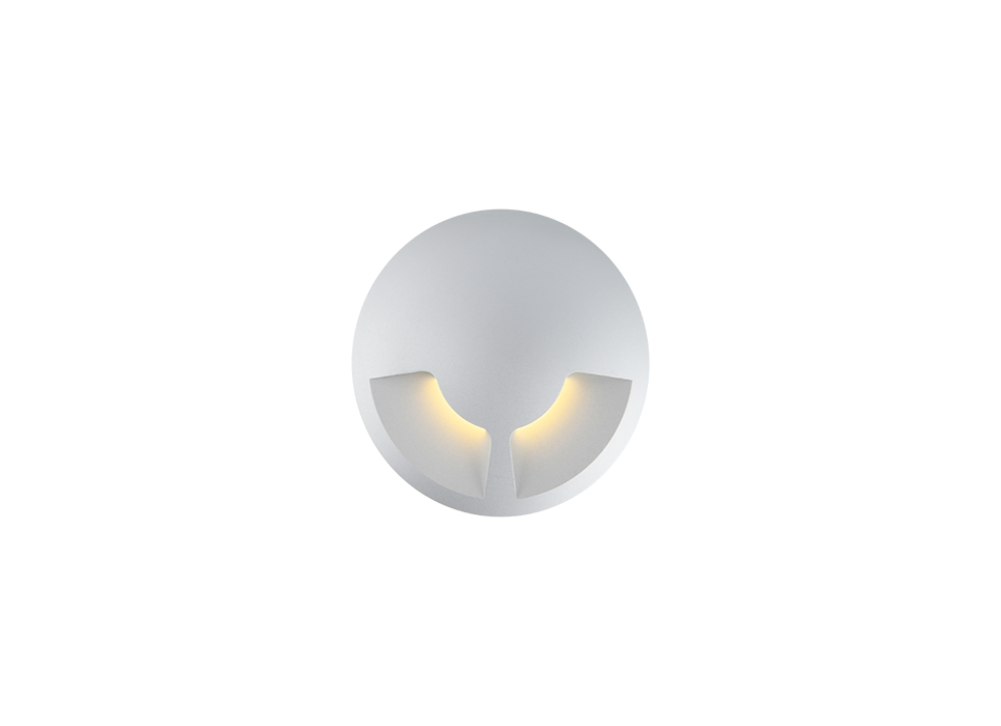

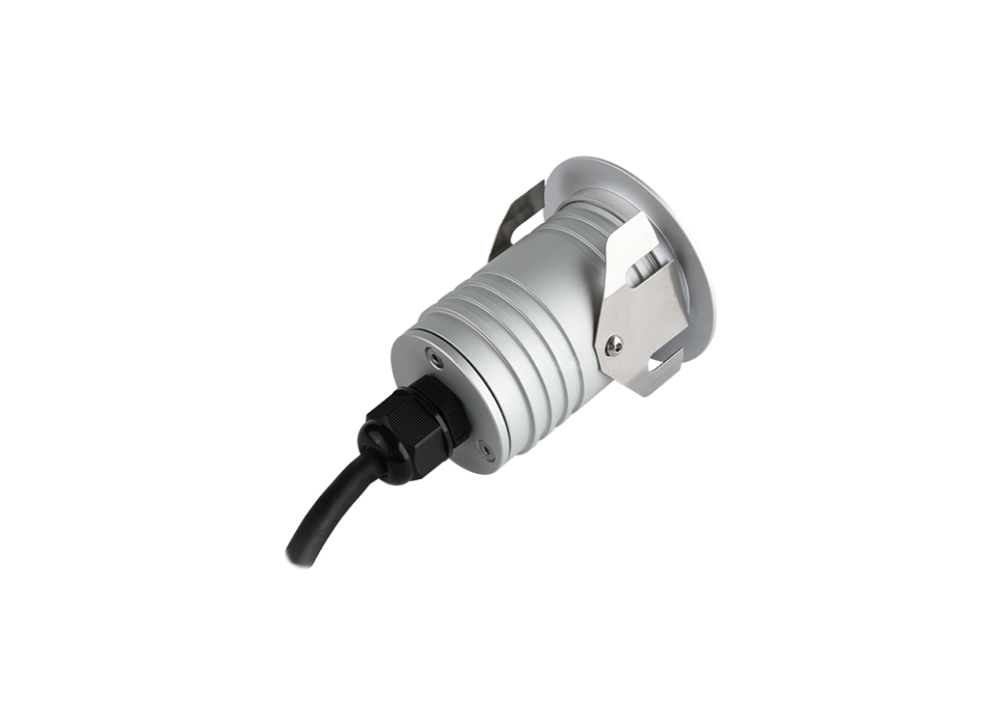

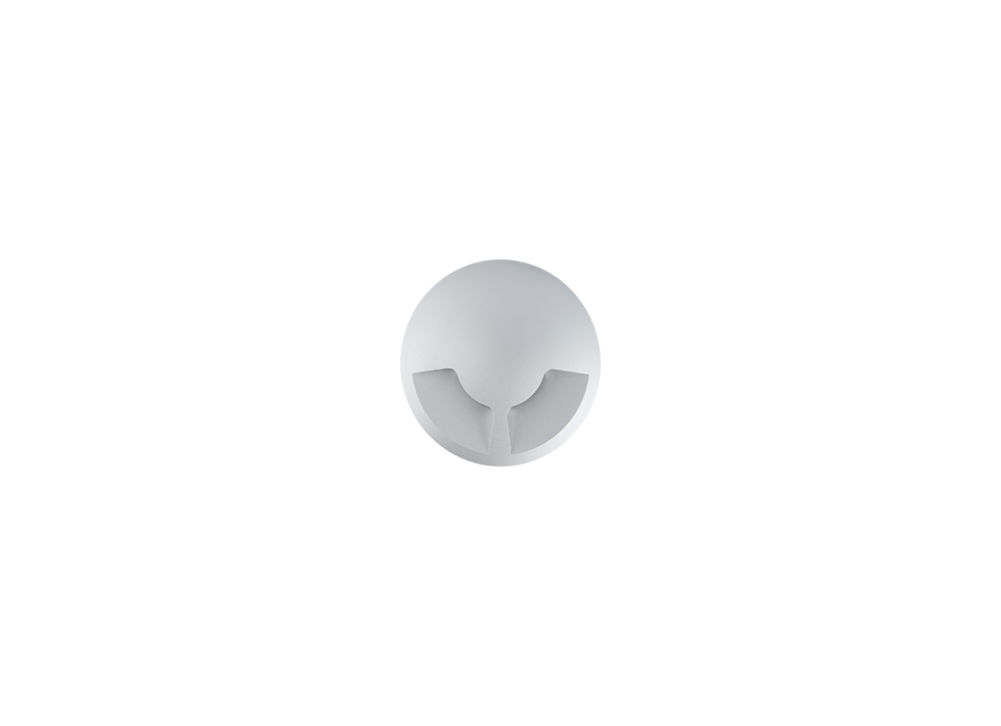

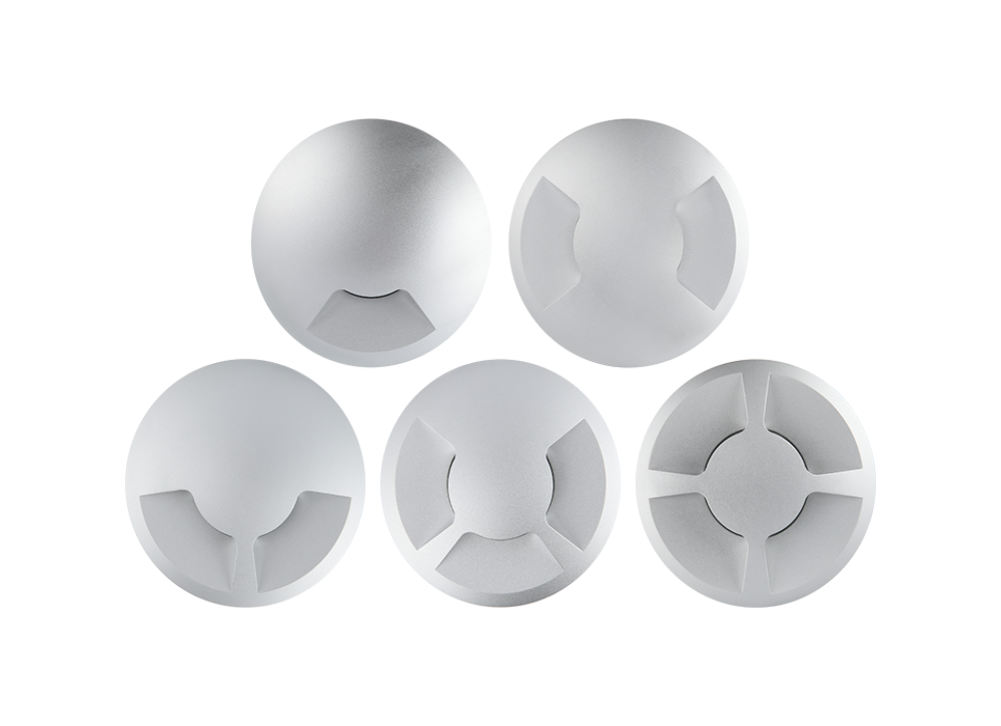

Litecent In-ground led surface washer grazer light have total four difference directions output, Which provides 1~9W rate power, 350/750mA and 12/24VDC input voltage, Recessed installation and High class waterproof level with IP67, with corrosion and compression resistance. They are mass use for outdoor decking, path way, steps and markers. All simple to install and have low energy consumption.
|
MODEL |
► |
PAL0301D |
|
OPERATING VOLTAGE |
► |
12V DC,24V DC |
|
POWER CONSUMPTION |
► |
3W |
|
LED TYPE |
► |
High Power LED |
|
COLOR RANGE |
► |
2700K,3000K,4000K |
|
CRI |
► |
90min, 80min |
|
SYSTEM EFFICIENCY |
► |
85 lm/W@3000K |
|
FWHM |
► |
3*25°/3*40°/3*60° |
|
MATERIAL |
► |
Aluminum + Tempered glass |
|
OPERATING TEMPERATURE |
► |
-20°C ~ +55°C |
|
STORAGE TEMPERATURE |
► |
-25°C ~ +60°C |
|
LIFE TIME |
► |
50,000 hours/L70 at 25°C |
|
CONNECTION |
► |
Quick-Plug (Option) |
|
DIMENSIONS |
► |
Φ64*102(H)mm |
|
WATER PROOF |
► |
IP67 |
|
CONTROL |
► |
ON/OFF |
|
LIST |
► |
CE & ROHS |
