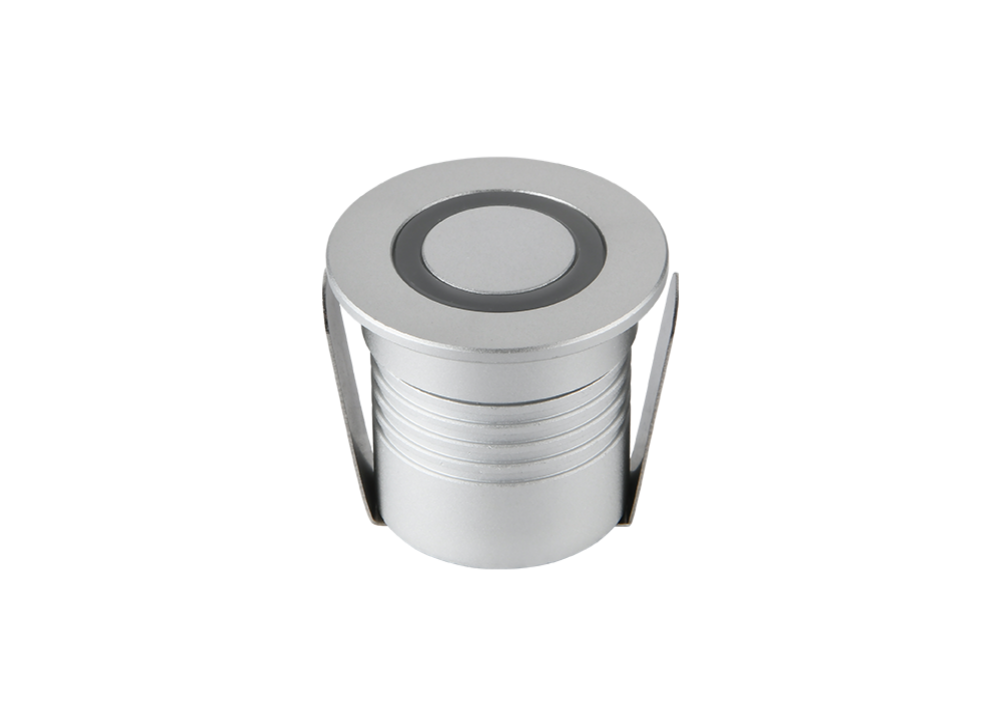

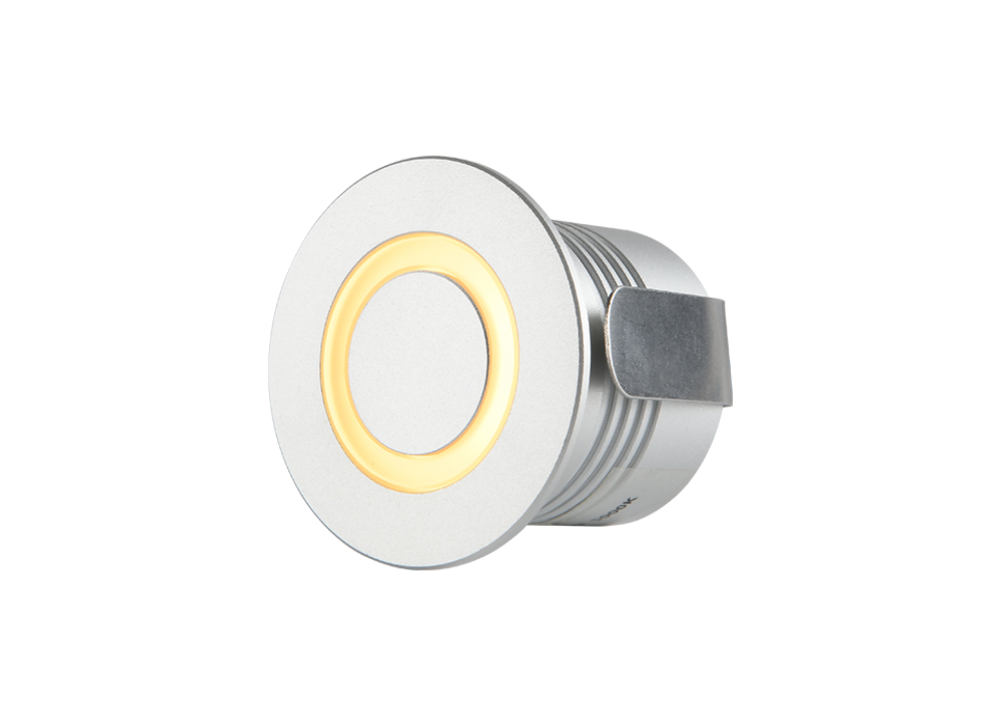

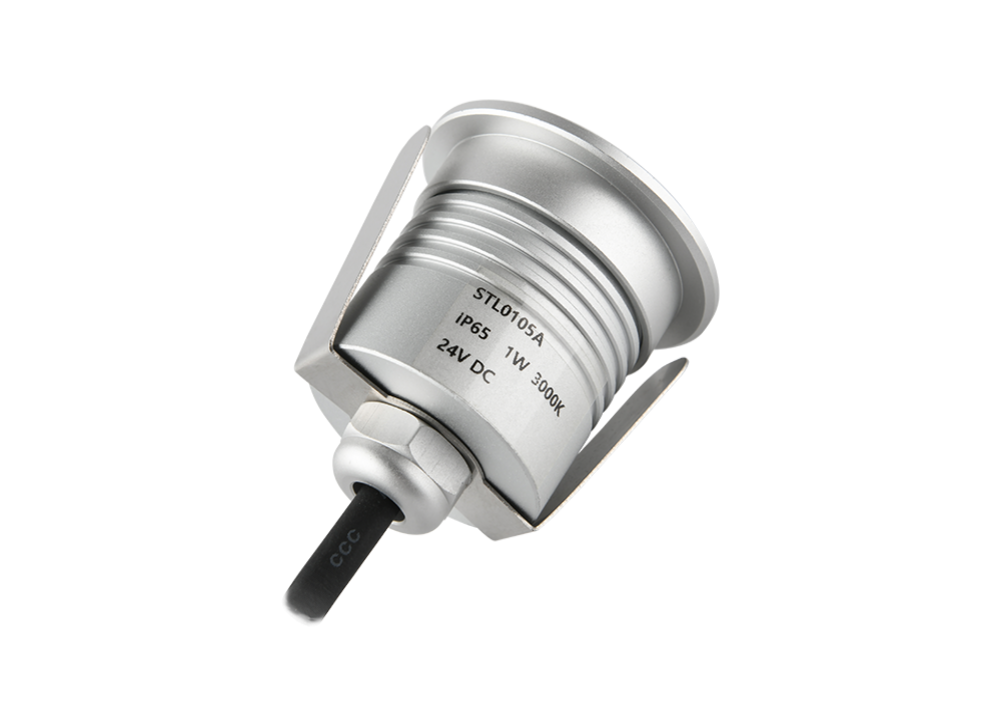

Litecent ranges of led step light with art to quality process, which provides 1~3W rate power,350mA and 12/24VDC input voltage, Recessed installation, High class waterproof IP67, with corrosion and compression resistance by use pure aluminum and anodized finished. They are mass use for stairs, parks, decking and walls decorative projects. All of them are simple to install and have low energy consumption.
|
MODEL |
► |
STL0105A |
|
OPERATING VOLTAGE |
► |
12V DC,24V DC |
|
POWER CONSUMPTION |
► |
1W |
|
LED TYPE |
► |
High Power LED |
|
COLOR RANGE |
► |
2700K,3000K,4000K |
|
CRI |
► |
90min, 80min |
|
SYSTEM EFFICIENCY |
► |
100 lm/W@3000K |
|
FWHM |
► |
40°/60° |
|
MATERIAL |
► |
Aluminum + PMMA |
|
OPERATING TEMPERATURE |
► |
-20°C ~ +55°C |
|
STORAGE TEMPERATURE |
► |
-25°C ~ +60°C |
|
LIFE TIME |
► |
50,000 hours/L70 at 25°C |
|
CONNECTION |
► |
Quick-Plug (Option) |
|
DIMENSIONS |
► |
Φ45*46(H)mm |
|
WATER PROOF |
► |
IP65 |
|
CONTROL |
► |
ON/OFF |
|
LIST |
► |
CE & ROHS |
