Description

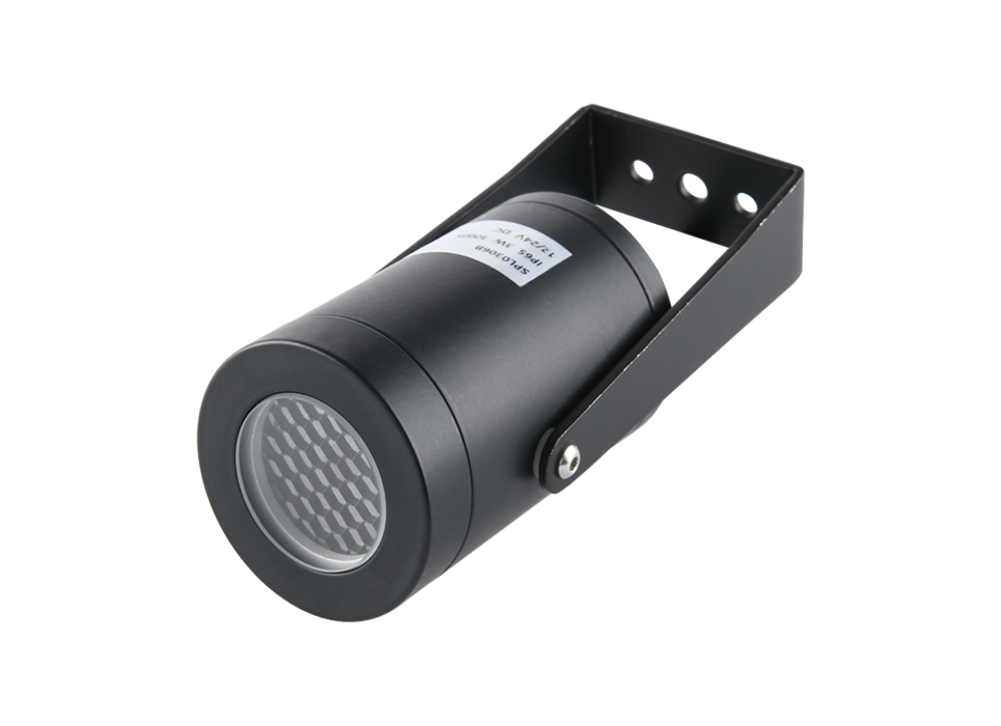

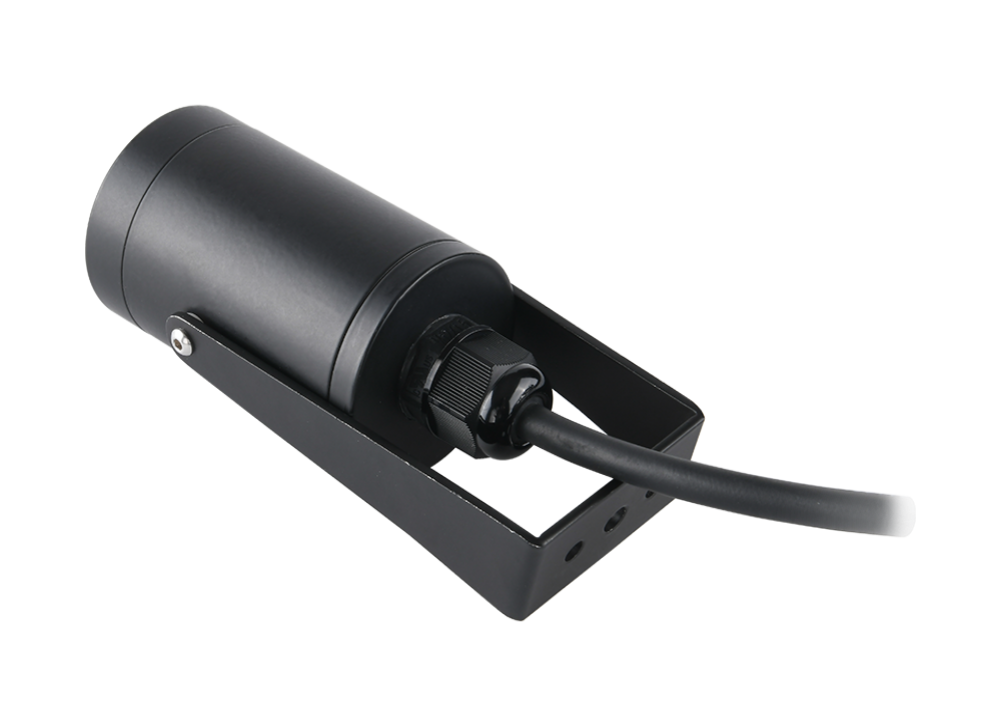

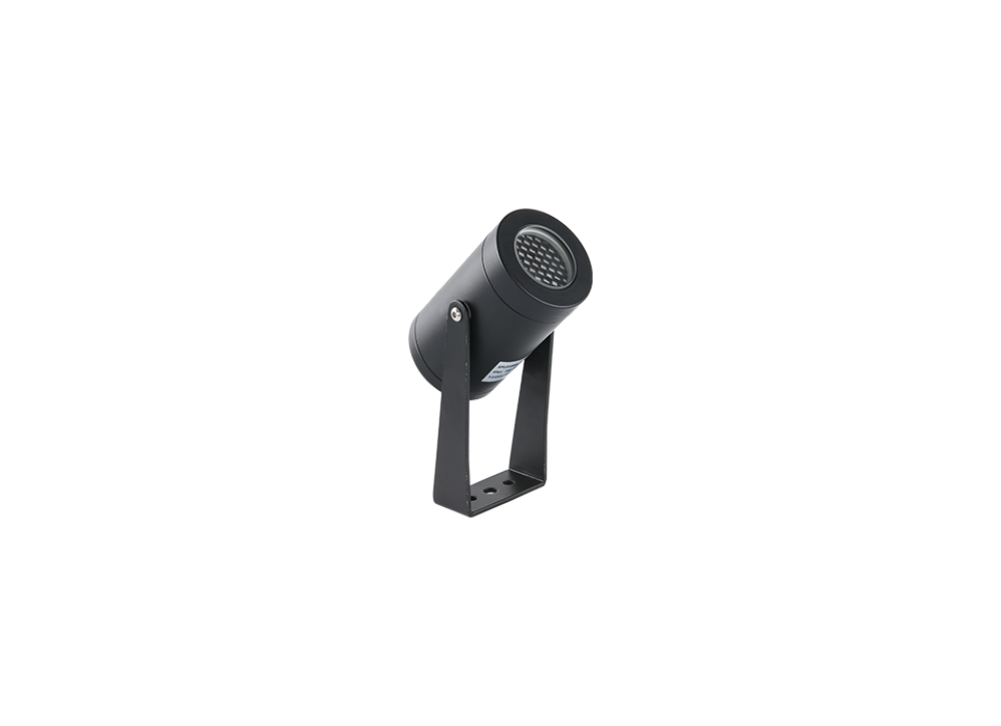

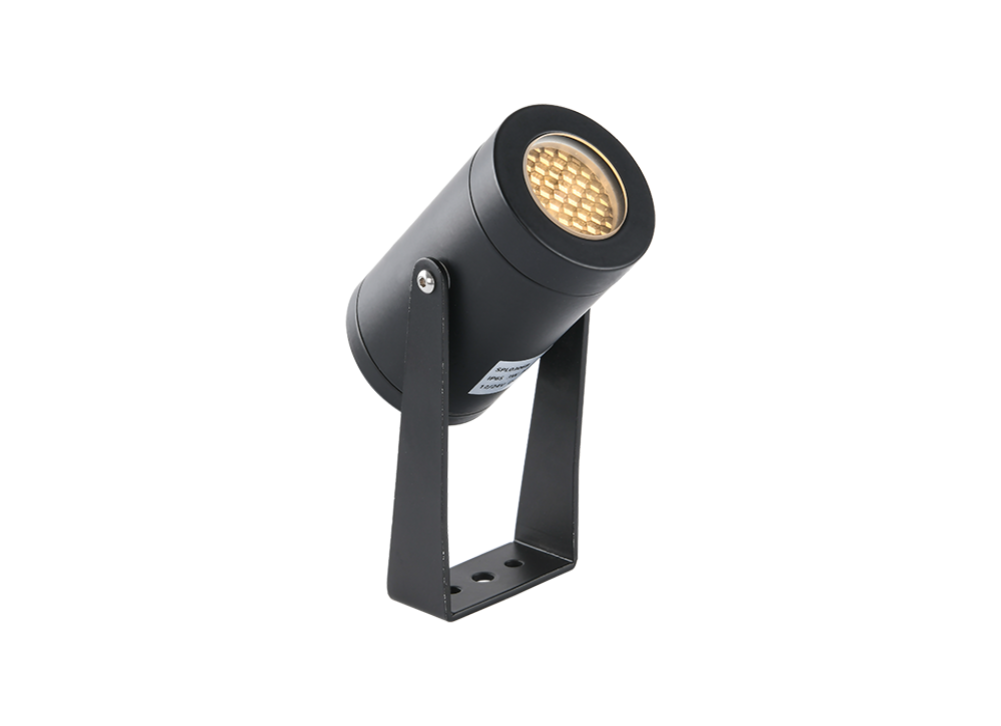

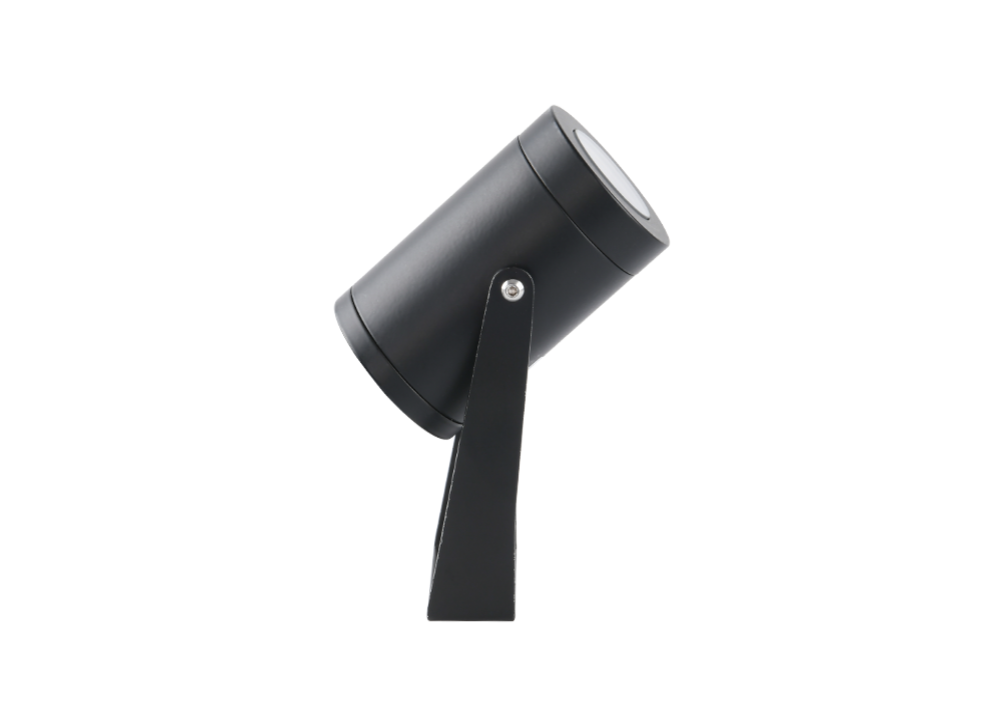

The Litecent ranges of led spot light with art to quality process, which provides 1~25W rate power, 350/750mA and 12/24VDC input voltage, U shape bracket and in-ground spike is available. High class waterproof level with IP67, with corrosion and compression resistance by use pure aluminum 1070 and reliable gasket. They are mass use for outdoor decking, path way, steps and markers. All of them are simple to install and have low energy consumption.
|
MODEL |
► |
SPL0306A |
|
OPERATING VOLTAGE |
► |
12V DC,24V DC |
|
POWER CONSUMPTION |
► |
3W |
|
LED TYPE |
► |
High Power LED |
|
COLOR RANGE |
► |
2700K,3000K,4000K |
|
CRI |
► |
90min, 80min |
|
SYSTEM EFFICIENCY |
► |
120lm/W@3000K |
|
FWHM |
► |
10°/15°/21°/36°/60° |
|
MATERIAL |
► |
Aluminium + Tempered glass |
|
OPERATING TEMPERATURE |
► |
-20°C ~ +55°C |
|
STORAGE TEMPERATURE |
► |
-25°C ~ +60°C |
|
LIFE TIME |
► |
50,000 hours/L70 at 25°C |
|
CONNECTION |
► |
Quick-Plug (Option) |
|
DIMENSIONS |
► |
Φ45*98(H)mm |
|
WATER PROOF |
► |
IP67 |
|
CONTROL |
► |
ON/OFF |
|
LIST |
► |
CE & ROHS |
